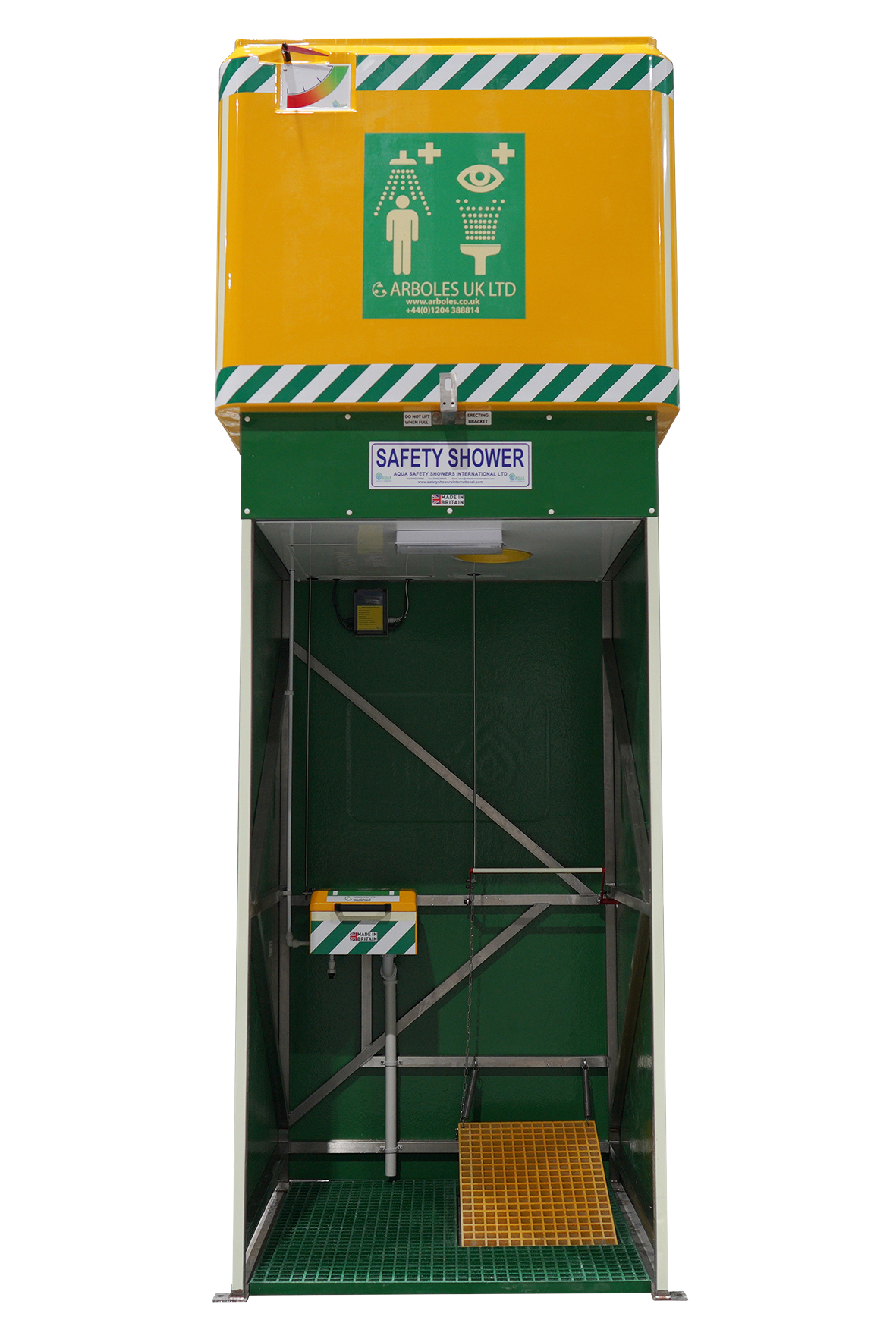

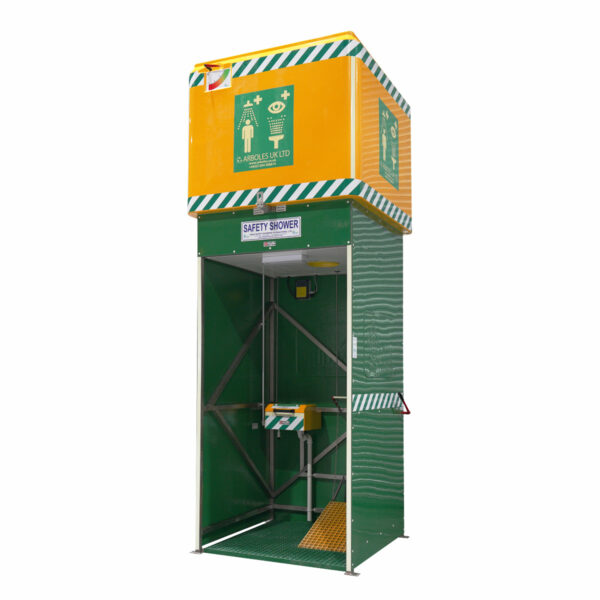

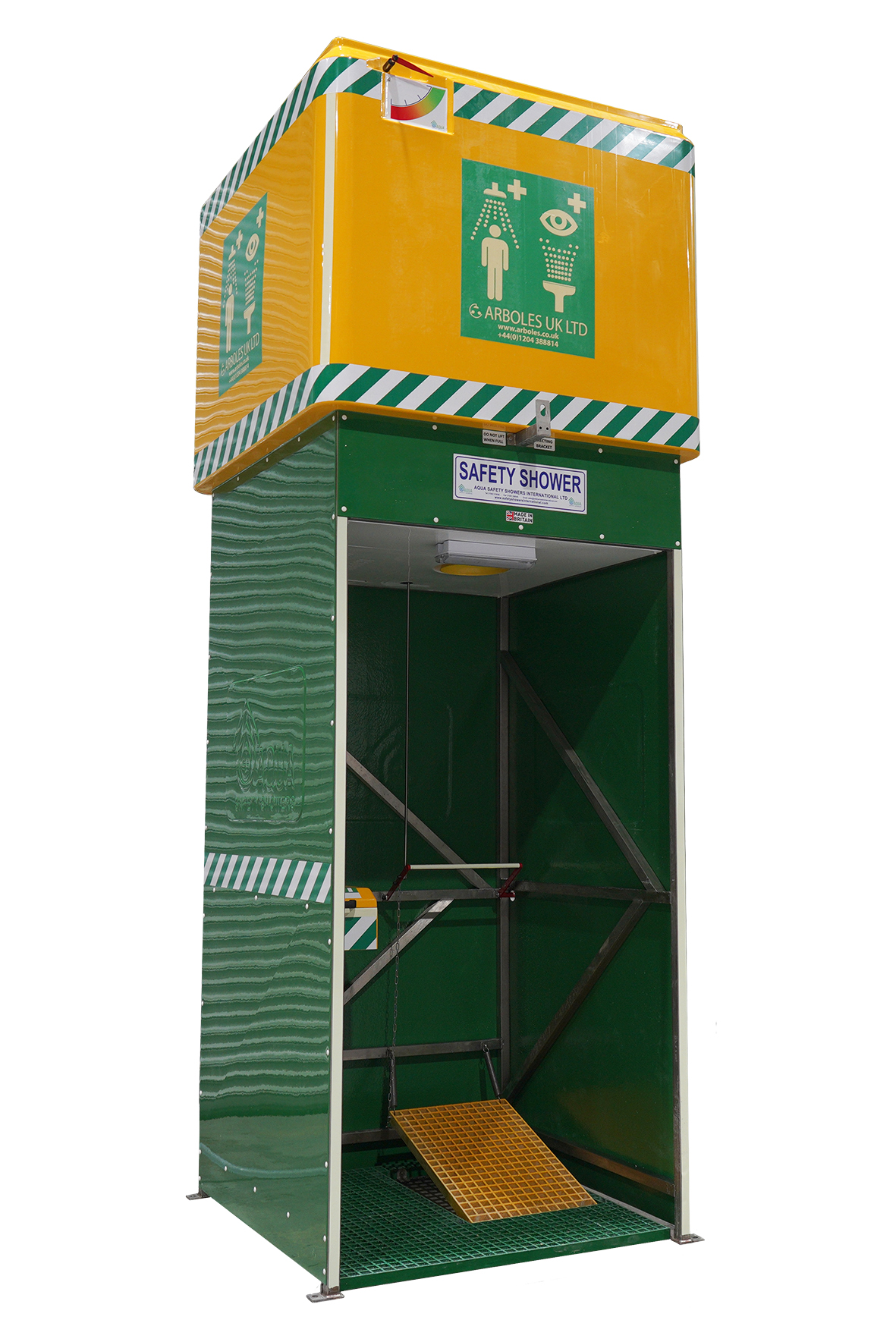

1500L Tank Fed Emergency Shower with Eyewash. Side Panelling & Platform

Description

THE P4 IS A SELF CONTAINED DRENCH SHOWER AND EYEWASH UNIT WHICH HAS A 1500L TANK AND IS ABLE OF DELIVERING OVER 15 MINUTES OF CONSTANT TEPID WATER TO A CASUALTY. THE EMERGENCY SHOWER CAN BE INSTALLED BOTH INDOORS AND OUTDOORS WHERE A WATER SUPPLY ISN’T PRESENT. THE TANK IS BRIGHT YELLOW SO IT’S EASY TO SPOT AND IS OBVIOUS WHAT IT IS! THE FRAME IS BUILT FROM ROBUST AND COROSION RESISTANT MATERIALS TO ENSURE A LONG LIFE. SIDE AND REAR PANELLING IS ADDED TO THE PRODUCT TO PROVIDE PROTECTION FROM THE ELEMENTS WHEN IN USE.



THE SHOWER IS OPERATED BY AN ACTIVATION HANDLE THAT KEEPS THE SHOWER ON UNTIL THE HANDLE IS MANUALLY RESET and also by the walk on platform. THE EYEWASH IS OPERATED BY LIFTING THE LID.



THE P4 COMES WITH A WATER LEVEL INDICATOR, A WATER TEMPERATURE DISPLAY AND A TESTING LEVER FOR EASY TESTING AND MAINTENANCE, L.E.D lamp, walk on shower platform.



TECHNICAL DETAILS



CLASSIFICATION:    NON HAZARDOUS

POWER SUPPLY:    240V 1PH 50HZ

WATER SUPPLY PRESSURE:    0.5 – 6 BAR

INLET CONNECTION:    1″ BSPM

SCREENED OVERFLOW:    40MM PVC-U

SHOWER FLOW RATE:    76L PER MINUTE

EYEWASH FLOW RATE:    MIN 1.5L PER MINUTE

BALL FLOAT VALVES:    2 X 3/4″STAINLESS VALVES WITH 6″ PLASTIC FLOATS

SHOWER OPERATION:    PANIC BAR and grp foot platform

EYEWASH OPERATION:    LIFT LID

SIGNAGE:    SELF ADHESIVE PHOTOLUMINOUS PICTORAL SIGN

WATER HEATER:    2.5KW (STAT SET AT 18°C)

remote alarm:     microswitch fitted to shower and eyewash





MATERIAL DETAILS



HEADER TANK:    1500LITRE YELLOW INSULATED GRP

HEADER TANK LID:    WHITE INSULATED GRP

SHOWER FRAME:    304 STAINLESS STEEL

OPERATING VALVES:    STAINLESS STEEL

SHOWER ROSE:    YELLOW ABS

PANIC BAR / TESTING LEVER:    STAINLESS STEEL POWDER COATED IN RED FOR HIGH VISIBILITY

EYEWASH:    YELLOW GRP WITH 2 LOW PRESSURE NOZZLES

PANELLING:    SIDE AND REAR – GREEN GRP

SHOWER PLATFORM:     yellow non slip grp





VIEW OUR FULL RANGE OF TANK FED SHOWERS HERE.





THE SHOWER MEETS AND EXCEEDS ALL ANSI AND EN STANDARDS.
