Product Code 4720

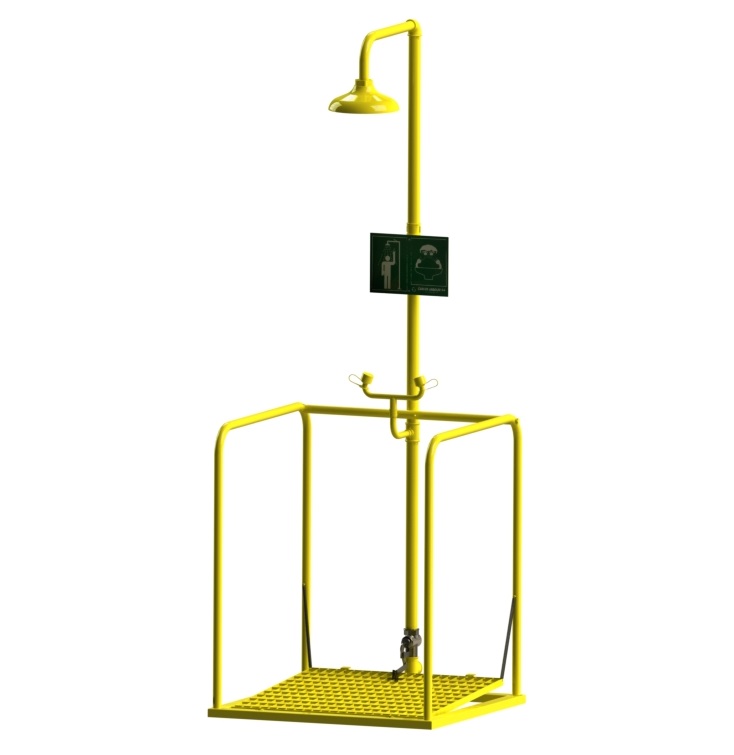

Platform Operated Emergency Drench Shower with Eyewash – 4720
For full-body and eye safety in one automatic system, the 4720 delivers. This dual-function, platform-operated unit is ideal for outdoor or hazardous areas where immediate, hands-free operation is a must. Built tough, works smart, and ready when it counts.
Description
The 4720 combines a self-draining, platform-activated emergency drench shower with a fully automatic eyewash station—all triggered the moment someone steps onto the platform. Built with galvanised steel piping, brass fittings, and a bright yellow chemical-resistant Rilsan coating, this unit offers fast, hands-free response in emergency situations. Stainless steel shower head option available on request.
– ANSI, EN15154-2, and DVGW certified
– Platform-activated, fully automatic shower and eyewash
– Self-draining to prevent stagnant water
– Galvanised steel construction with high-visibility Rilsan coating
– Durable brass fittings and elbows
– Optional stainless steel shower head
– Designed for external use
– 1¼” BSP water supply inlet
– Operating pressure: recommended 2 bar/ minimum 1.5 bar/ maximum 8 bar
Additional information
Product details
The 4720 combines a self-draining, platform-activated emergency drench shower with a fully automatic eyewash station—all triggered the moment someone steps onto the platform. Built with galvanised steel piping, brass fittings, and a bright yellow chemical-resistant Rilsan coating, this unit offers fast, hands-free response in emergency situations. Stainless steel shower head option available on request.
– ANSI, EN15154-2, and DVGW certified
– Platform-activated, fully automatic shower and eyewash
– Self-draining to prevent stagnant water
– Galvanised steel construction with high-visibility Rilsan coating
– Durable brass fittings and elbows
– Optional stainless steel shower head
– Designed for external use
– 1¼” BSP water supply inlet
– Operating pressure: recommended 2 bar/ minimum 1.5 bar/ maximum 8 bar
Specification
- Materials Galvanised steel, brass valves, ABS
- Operation Walk on GRP platform
- Colour High visibility yellow (RAL1016)
- Connection(s) 1¼" BSP female
- Inlet Pressure Recommended 2bar (max 8bar)
- Flow Rate(s) Shower 110 L/min, Eyewash 22 L/min
- Warranty 5 years from date of purchase
- Certifications ANSI, EN, DIN, DVGW
-
