Product Code 4220 AW

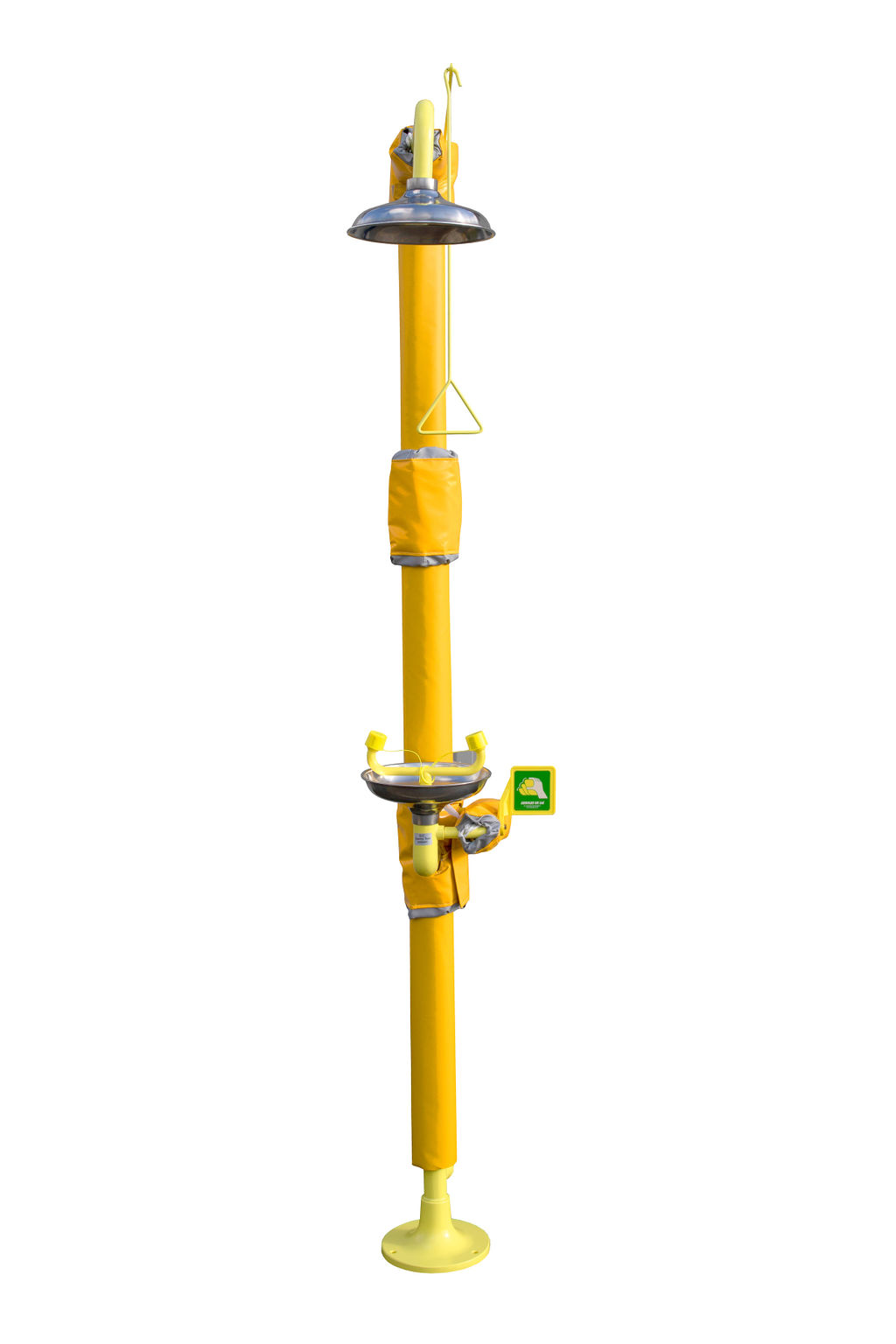

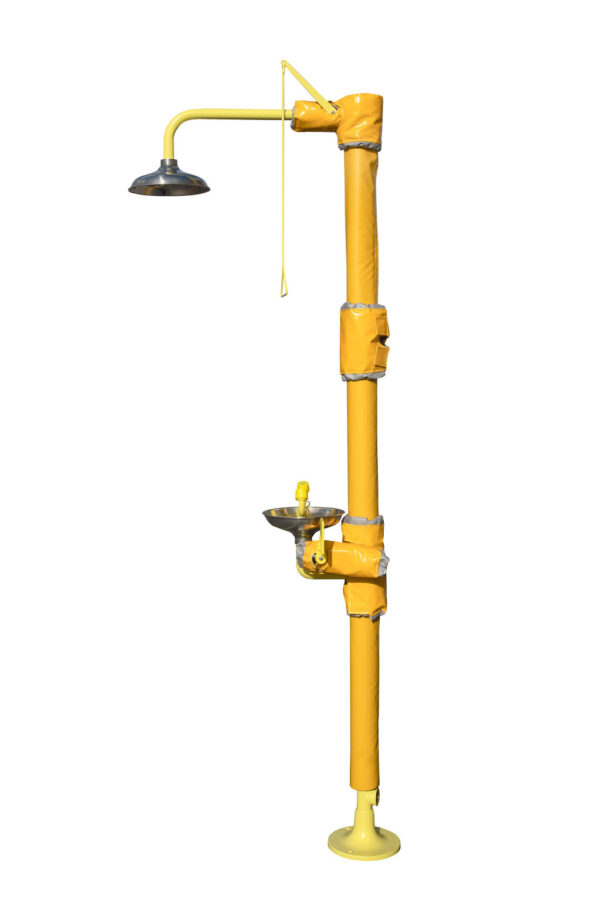

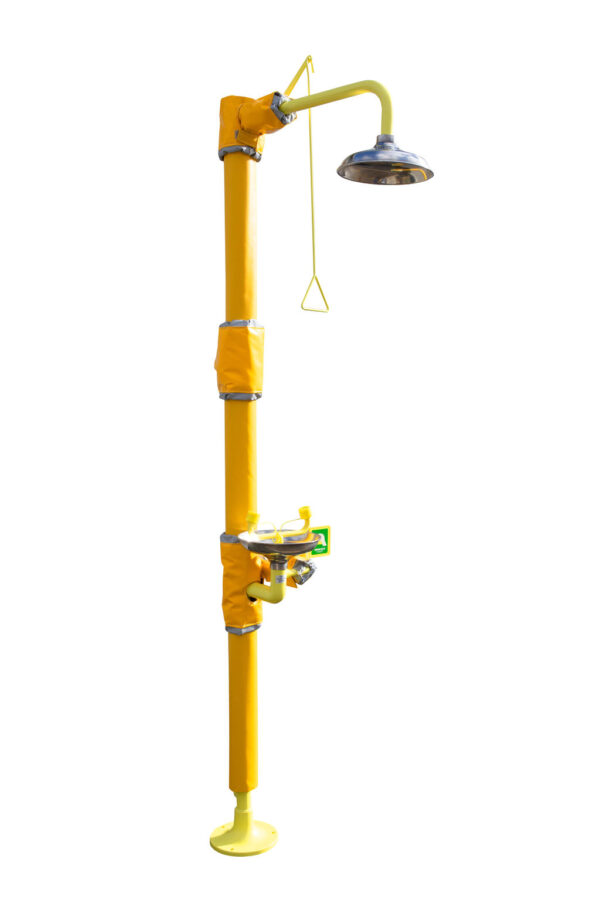

Outdoor Floor Standing Safety Shower With Eyewash – 4220 AW
Built to handle the worst weather without missing a beat, the 4220 AW (All Weather) is a reliable emergency safety shower and independently operated eyewash unit perfect for industrial sites, chemical plants, or any place where safety equipment needs to perform. It is a durable, no-nonsense piece of kit that delivers peace of mind.
The shower offers frost proof features via trace heating and an insulated jacket. This emergency shower features a stainless steel eyewash bowl and stainless steel shower rose which is impervious to UV damage.
For ATEX requirements there is a Zone 1 and Zone 2 configuration available for this model. Please contact us for more information.
Description
The 4220 AW (All Weather) is a fully trace-heated, all-weather emergency safety shower with an integrated and independent functioning eyewash station. Built for tough outdoor environments. Constructed from durable galvanised steel with a weather and chemical resistant Rilsan coating, this unit ensures reliable emergency response in cold temperatures.
– Fully trace-heated and insulated for cold-weather performance
– Self-regulating thermostat for energy-efficient temperature control
– Thermostat activates automatically at 0°C and deactivates at 3°C for energy-efficient performance
– Steel body with UV-resistant and weatherproof Rilsan coating
– High-visibility insulation with adhesive and Velcro sealing
– Pull rod-operated shower with continuous flow functionality

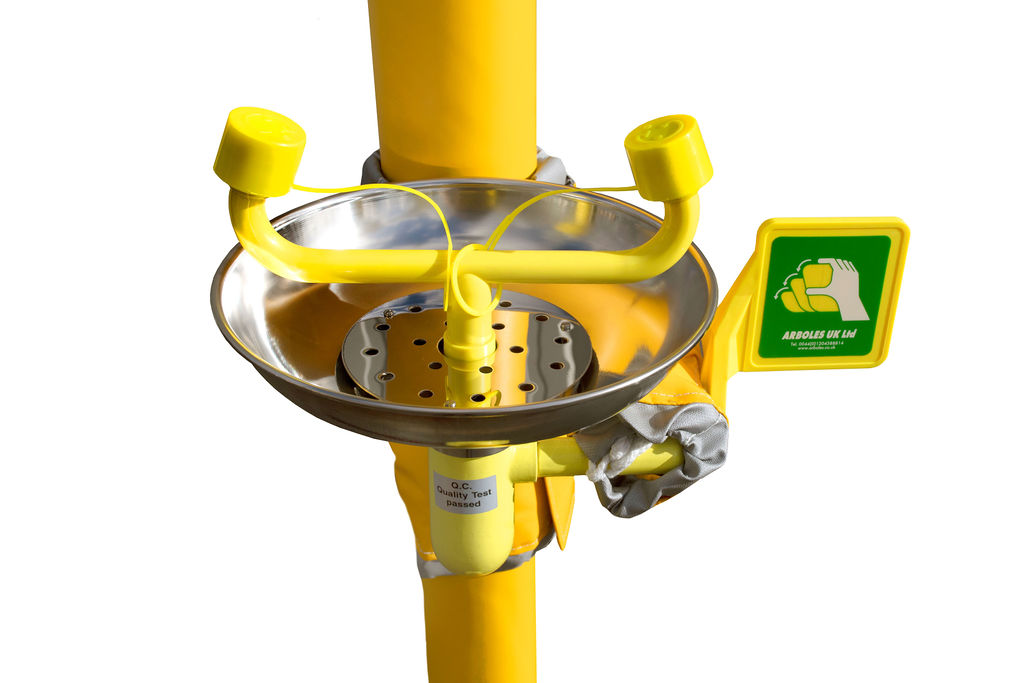

– Push-handle operated eyewash station with continuous flow
– 1¼″ inlet; recommended operating pressure: 2 bar (min. 1.5 bar, max. 8 bar)
Additional information
Product details
The 4220 AW (All Weather) is a fully trace-heated, all-weather emergency safety shower with an integrated and independent functioning eyewash station. Built for tough outdoor environments. Constructed from durable galvanised steel with a weather and chemical resistant Rilsan coating, this unit ensures reliable emergency response in cold temperatures.
– Fully trace-heated and insulated for cold-weather performance
– Self-regulating thermostat for energy-efficient temperature control
– Thermostat activates automatically at 0°C and deactivates at 3°C for energy-efficient performance
– Steel body with UV-resistant and weatherproof Rilsan coating
– High-visibility insulation with adhesive and Velcro sealing
– Pull rod-operated shower with continuous flow functionality
– Push-handle operated eyewash station with continuous flow
– 1¼″ inlet; recommended operating pressure: 2 bar (min. 1.5 bar, max. 8 bar)
Specification
- Materials Galvanised Steel, Stainless Steel bowls
- Materials ctd Brass valves
- Shower Operation Pull rod
- Eyewash Operation Push handle
- Colour High Visibility Yellow
- Coating Chemical resistant Rilsan
- Connection(s) 1¼” BSP Female
- Inlet Pressure Recommended 2bar (max 8bar)
- Flow Rate(s) Shower 110 L/min, Eyewash 22 L/min
- Trace Heating 230v IP65 rated components
- Insulation Thermal foam lagging
- Insulation ctd Weather/ scuff proof PVC jacket
- Shower Warranty 5 years from date of purchase
- Trace Heating Warranty 12 months from date of purchase
- Certification ANSI, EN, DIN, DVGW
-
Installation Instructions
This document is only available in .pdf format
Download
