Product Code 801701

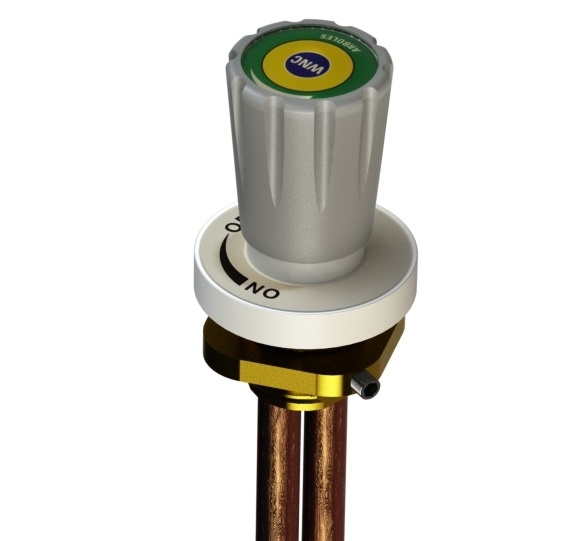

Fume Cupboard Front Control Valve With Copper Tails – 801701
Perfect for lab environments and for fume cupboards, the 801701 control valve supports efficient service supplies, with copper tails for easy installation and WRAS approval. This fume cupboard valve is a reliable and compliant solution for any fume cupboard setup.
Our range of fume cupboard controls includes:

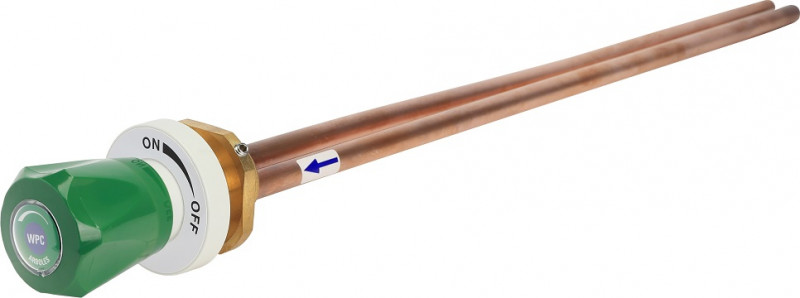

– 801701 – Water

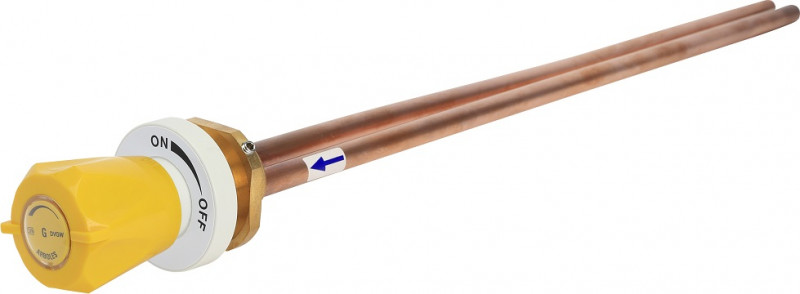

– 801703 – Gas

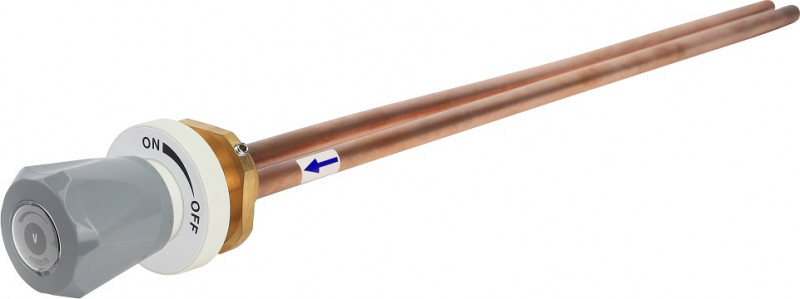

– 801704 – Vacuum

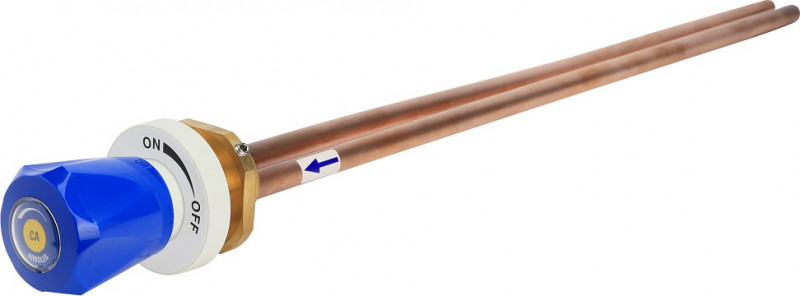

– 801705 – Compressed Air

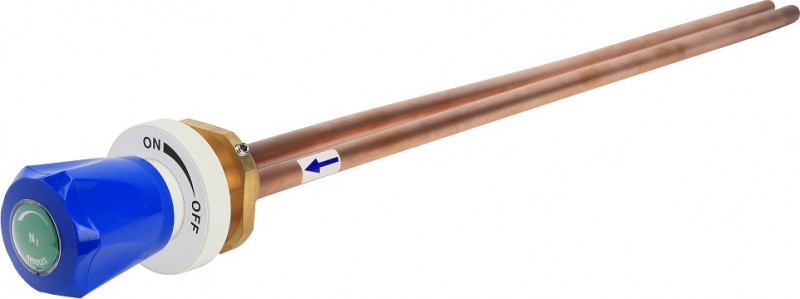

– 801706 – Other Gases (Nitrogen, Argon, Helium, etc.)
Description
The 801701 is a front control valve designed specifically for fume cupboards. It features a 1/4″ BSP outlet and comes equipped with 600mm copper tails for easy connection to service supplies for fume cupboards. Built for reliability, it is WRAS approved for peace of mind.
– 1/4″ BSP outlet for standard connectivity
– 600mm copper tails for service supply connection
– Designed for front control in fume cupboard setups
– WRAS approved for water safety compliance
Additional information
Product details
The 801701 is a front control valve designed specifically for fume cupboards. It features a 1/4″ BSP outlet and comes equipped with 600mm copper tails for easy connection to service supplies for fume cupboards. Built for reliability, it is WRAS approved for peace of mind.
– 1/4″ BSP outlet for standard connectivity
– 600mm copper tails for service supply connection
– Designed for front control in fume cupboard setups
– WRAS approved for water safety compliance
Specification
- Construction All brass body & copper tails
- Handwheel Chemical Resistant ABS (DIN coding)
- Pressure 40Mbar LPG
- Connection 10mm inlet and outlet copper tubes.
- Services Dry, water, special gases
- Warranty 5 years
- Notes Mounting hole 36mm diameter
- Notes (cntd) Maximum panel thickness 20mm
-

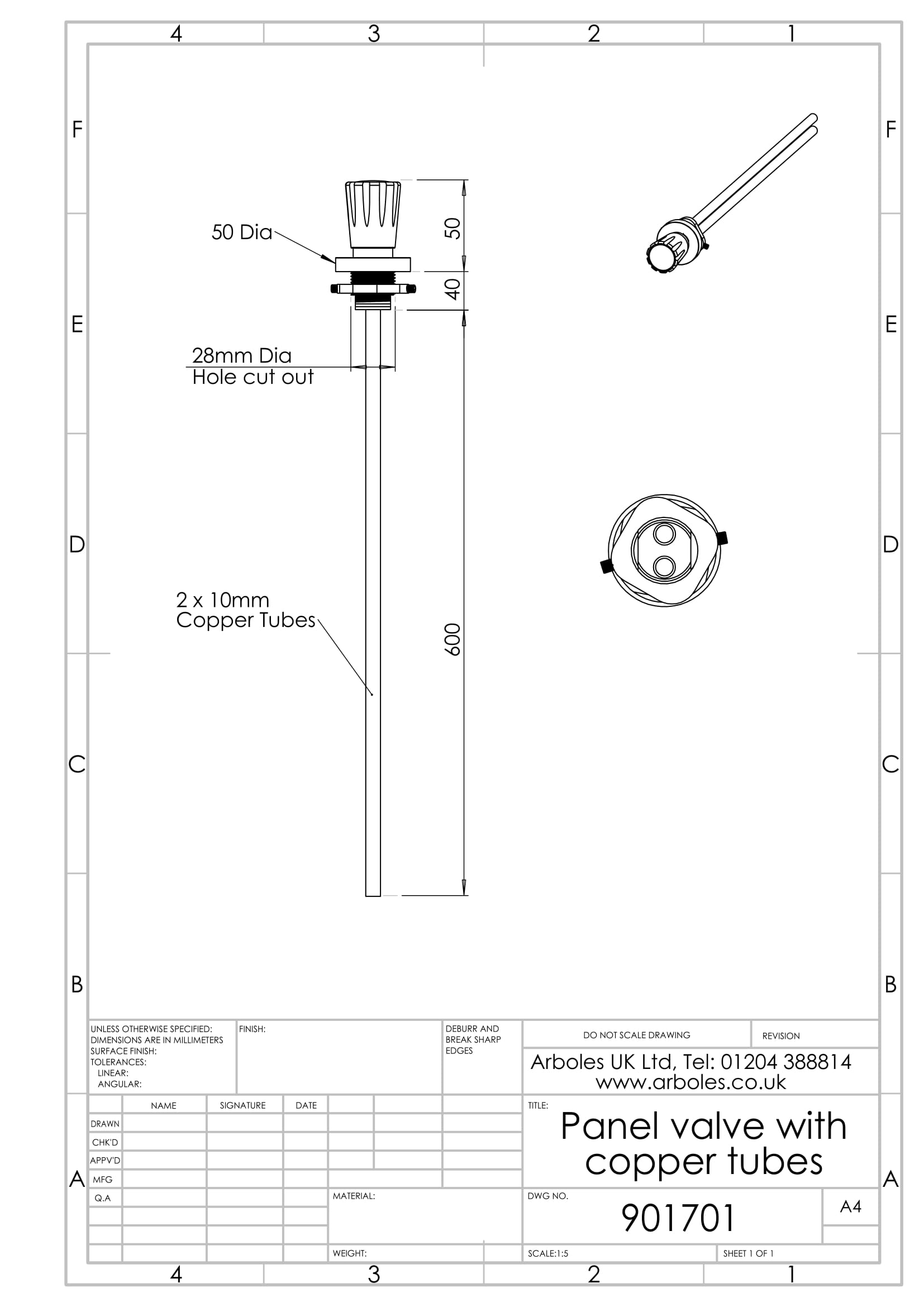

Download Datasheet
This document is only available in .pdf format
Download
