Product Code 900295

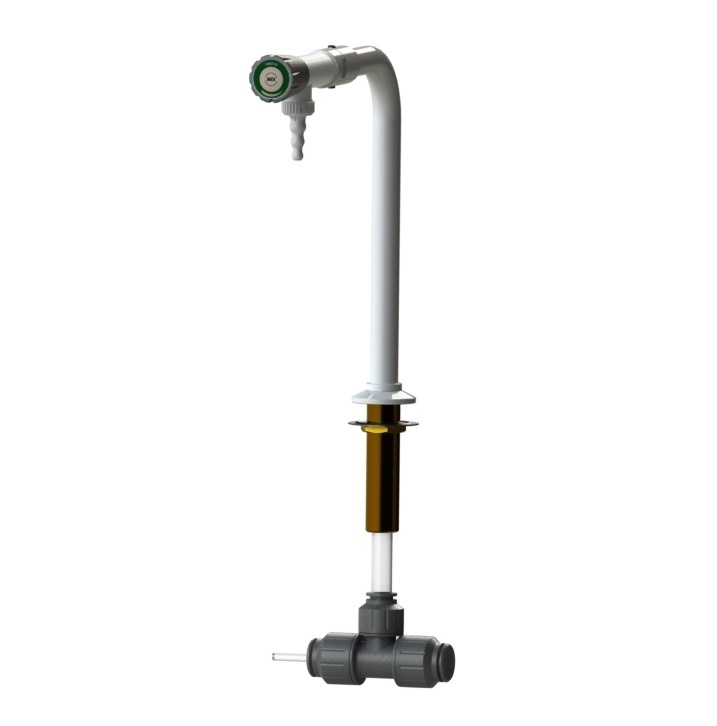

Recirculating Tap For Special Waters – 900295
Specifically designed for recirculating water systems this laboratory tap combines hygiene with the polypropylene lined tubing, precision with the 1/4 turn handwheel and reliability from the high end construction. This is a great choice for advanced laboratory setups requiring consistent operation and easy control.

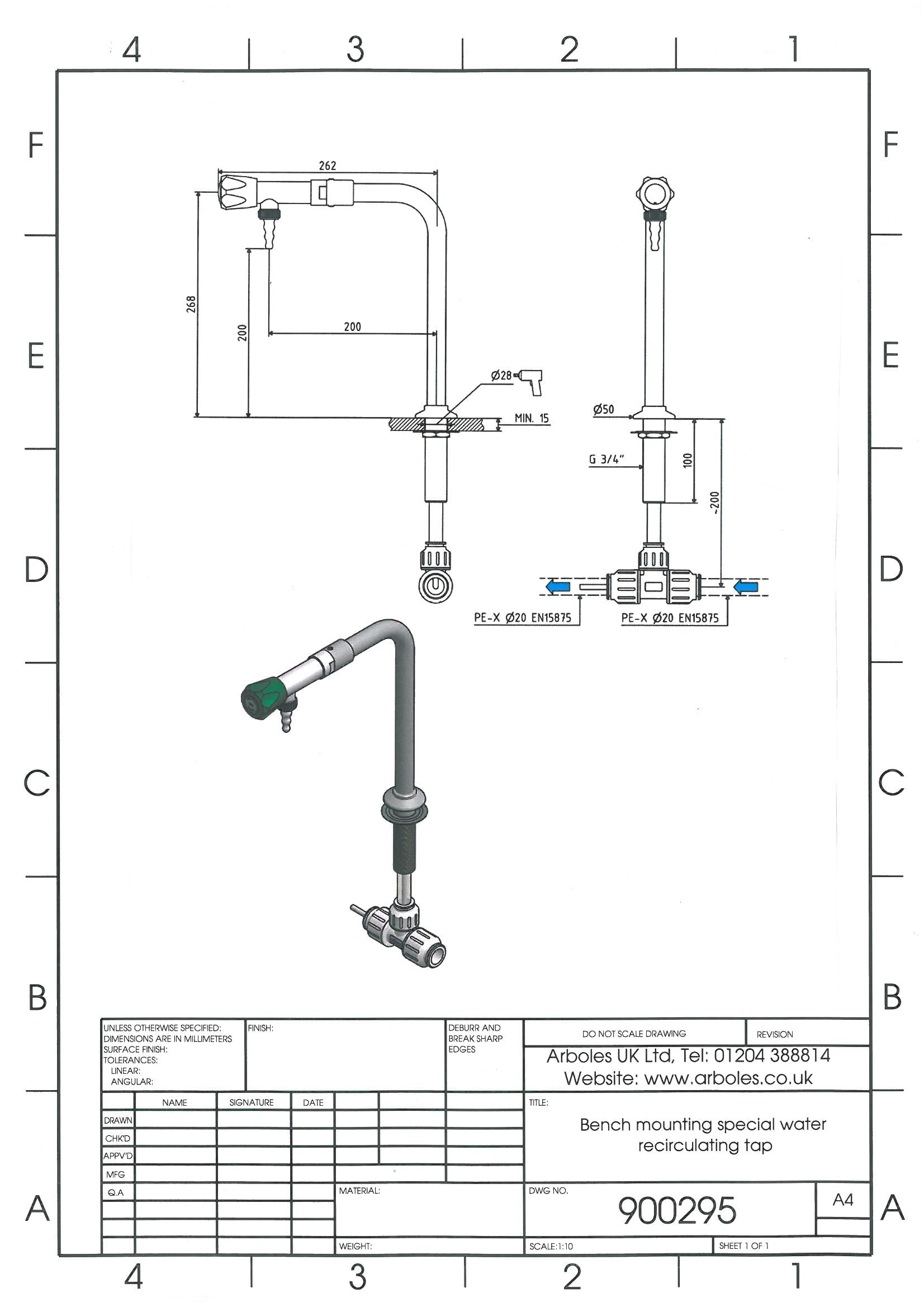

The tap is mounted with a 3/4” BSP male flat ended shank x 100mm long with back nut for mounting on the work surface. The flexible tube connection has a 12mm inlet and outlet connectors are the 20mm push in type.
Description
This Recirculating Tap is designed for use with special recirculating waters, offering precise control and a removable serrated nozzle. Constructed with a brass body and Rilsan coating, it includes polypropylene internals and flexible tube connections.
– Quarter turn handwheel operation
– Removable serrated nozzle
– Polypropylene internal parts
– Flexible tube connection (12mm inlet/outlet)
– 3/4” BSP male flat ended shank (100mm long) with back nut
– WRAS approved
– Brass body with Rilsan plastic coating
Additional information
Product details
This Recirculating Tap is designed for use with special recirculating waters, offering precise control and a removable serrated nozzle. Constructed with a brass body and Rilsan coating, it includes polypropylene internals and flexible tube connections.
– Quarter turn handwheel operation
– Removable serrated nozzle
– Polypropylene internal parts
– Flexible tube connection (12mm inlet/outlet)
– 3/4” BSP male flat ended shank (100mm long) with back nut
– WRAS approved
– Brass body with Rilsan plastic coating
Specification
- Service Recirculating special waters
- Materials Brass body
- Materials ctd All internal components are Polypropylene lined
- Handwheel (DIN standard) Grey ABS
- Colour RAL 9016 (White)
- Connection(s) Shank: 3/4" BSP. Inlet: PE Ø20 mm tube
- Operating Pressure Maximum 4bar. Maximum temp 48°C
- Coating Chemical resistant Rilsan
- Operation 1/4 turn ceramic closure
- Warranty 5 years from date of purchase
- Certification WRAS
-
Download Datasheet
This document is only available in .pdf format
Download
