Product Code 1110 AW

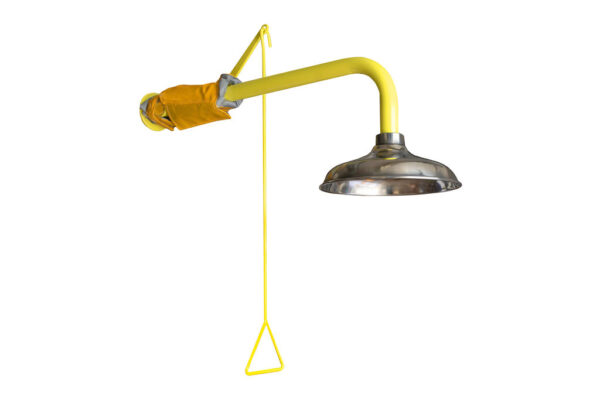

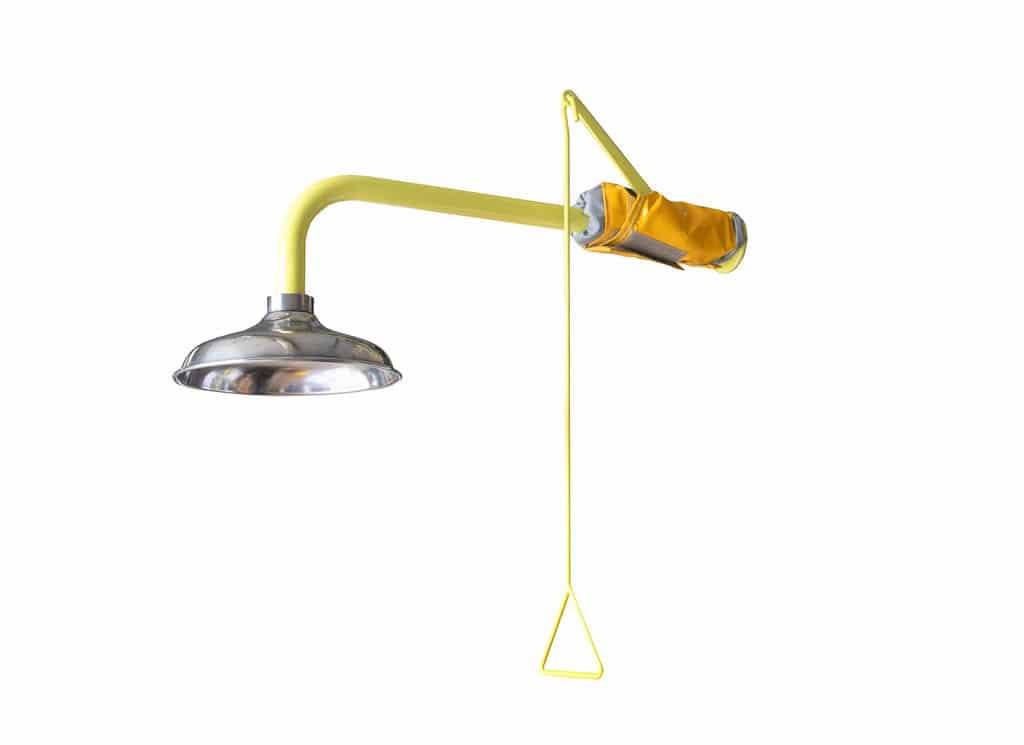

Trace Heated Wall Mounted Emergency Safety Shower – 1110 AW
Designed for harsh environments, the 1110 AW (All Weather) emergency safety shower stands up to freezing temperatures, UV rays, and tough outdoor conditions. With smart heating, durable build quality, and international safety certifications, it is a go-to for industrial and laboratory sites where safety is a priority.
The shower offers frost proof features via trace heating and an insulated jacket. This emergency shower features a stainless steel shower rose which is impervious to UV damage.
For ATEX requirements there is a Zone 1 and Zone 2 configuration available for this model. Please contact us for more information.
Description
The 1110 AW (All Weather) is a robust, trace-heated emergency safety shower designed for outdoor wall-mounted installation. Built for extreme weather, it features a durable galvanised steel construction with Rilsan coating and integrated heating to prevent freezing.
– Self-regulating trace heating element on inlet and valve
– High-visibility yellow insulated foam jacket with adhesive and Velcro seal
– Stainless steel shower head resistant to freezing and UV exposure
– Powder-coated steel body with tough Rilsan coating for outdoor durability
– Operated via a pull rod that locks in the “on” position until manually turned off
– Inlet size: 1″ – Operating pressure: 2bar recommended (min. 1.5bar, max. 8bar)
– Thermostat activates at 0°C and deactivates at 3°C for energy efficiency
– 230V operation, IP65 rated for weather protection
– ANSI, EN15154-2, and DVGW certified
– Includes elbow back plate for easy wall mounting
Additional information
Product details
The 1110 AW (All Weather) is a robust, trace-heated emergency safety shower designed for outdoor wall-mounted installation. Built for extreme weather, it features a durable galvanised steel construction with Rilsan coating and integrated heating to prevent freezing.
– Self-regulating trace heating element on inlet and valve
– High-visibility yellow insulated foam jacket with adhesive and Velcro seal
– Stainless steel shower head resistant to freezing and UV exposure
– Powder-coated steel body with tough Rilsan coating for outdoor durability
– Operated via a pull rod that locks in the “on” position until manually turned off
– Inlet size: 1″ – Operating pressure: 2bar recommended (min. 1.5bar, max. 8bar)
– Thermostat activates at 0°C and deactivates at 3°C for energy efficiency
– 230V operation, IP65 rated for weather protection
– ANSI, EN15154-2, and DVGW certified
– Includes elbow back plate for easy wall mounting
Specification
- Materials Galvanised Steel, Stainless Steel bowl
- Materials ctd Brass valves
- Operation Pull rod
- Colour High Visibility Yellow
- Coating Chemical resistant Rilsan
- Connection(s) 1¼” BSP Female
- Inlet Pressure Recommended 2bar (max 8bar)
- Flow Rate(s) Shower 110 L/min
- Trace Heating 230v IP65 rated components
- Insulation Thermal foam lagging
- Insulation ctd Weather/ scuff proof PVC jacket
- Shower Warranty 5 years from date of purchase
- Trace Heating Warranty 12 months from date of purchase
- Certification ANSI, EN, DIN, DVGW
-
Installation Instructions
This document is only available in .pdf format
Download
